The Role of Power Inverters in Enhancing Electric Vehicle Performance

Power Inverters in Electric Vehicles: Driving Efficiency and Performance

A device known as a power inverter converts the direct current (DC) power from the battery, which is used to run the electric motor, into alternating current (AC). The electric motors used in electric vehicles (EVs) are predominantly AC motors, requiring an inverter to convert the DC from the battery pack to the AC three-phase current that the motors operate on.

Moreover, inverters serve the purpose of controlling the speed, torque, and power output of the electric motor. This is accomplished by controlling both the frequency and amplitude of the AC signal to provide the vehicle with precise control over its dynamics and performance.

Energy storage systems, electronic systems, and efficiency improvements have given a new lease of life to electric vehicles. The power inverter is a core component that facilitates and enhances the use of EVs. It connects the battery to the electric motor, converting stored energy into usable energy for movement. This article explores the role of power inverters in enhancing the capabilities of the electric vehicle, their design principles, and their impact on power, efficiency, and vehicle dynamics, which also drive EV sales. For instance, in 2023, about 14 million new electric vehicles were registered worldwide, bringing the total number of EVs on the road to 40 million.

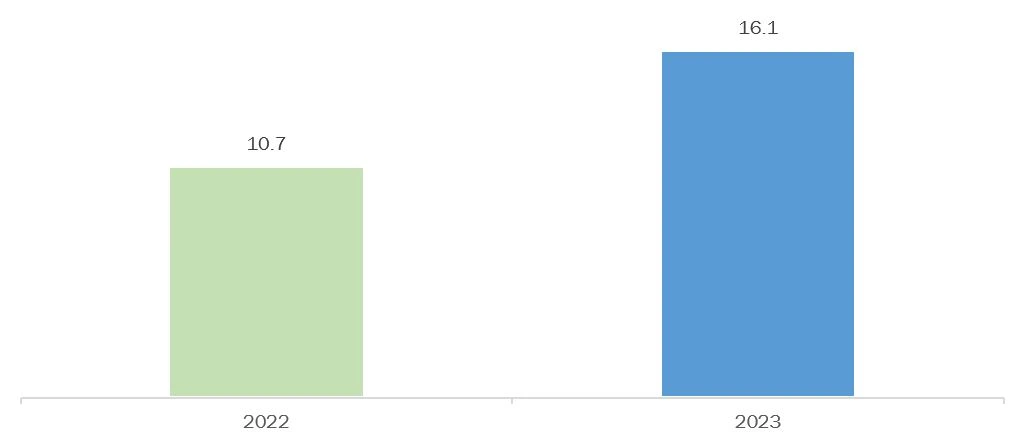

Electric Vehicles Sales, in Millions, China, 2022 to 2023

Source: IEA

Power Inverters Enhance Electric Vehicle Performance

Power inverters enhance EV performance in the following ways:

• Battery Charging Systems and Power Electronics
• Energy Management and Regenerative Braking

Let’s discuss each one in detail.

1. Battery Charging Systems and Power Electronics

An important aspect of electric vehicles (EVs) is the provision of rapid charging facilities for safe operation. This process is primarily managed by power electronics systems, which enable the control, incorporation, and management of electrical energy during charging.

Power electronics are critical in both onboard and offboard EV charging systems. For onboard chargers, AC/DC power electronic converters transform the mains AC voltage supplied to the charger into a DC voltage required for charging the vehicle battery. This involves rectification and further DC-DC conversion to achieve the desired voltage level and control the current to the battery. To avoid damaging the battery and ensure its longevity, the charging process is adjusted to the battery’s charge profile, typically involving multiple stages of constant voltage and current charging.

Off-board charging systems, such as DC fast-charging stations, are significantly enhanced by power electronics. Power electronic converters within these systems convert the input AC power supply to a high-voltage DC output capable of directly charging a vehicle’s battery without an onboard charger. Sophisticated control strategies manage the charge rate to prevent battery damage.

With the advent of bidirectional charging technology or Vehicle-to-Grid (V2G), power electronics have become even more advanced. These systems allow charging the vehicle and supplying power back from the vehicle battery to the house or grid during peak demand or blackouts. In wireless charging systems, power electronics manage power flow from the car’s battery to the primary coil, secondary coil, and the grid, ensuring efficient energy transfers while maintaining safety standards.

2. Energy Management and Regenerative Braking

Electric vehicles rely on energy management systems to handle complex power flows, utilizing power electronics to optimize efficiency. The primary objective is to allocate power from the battery to the electric motor, heating, ventilation, air conditioning (HVAC), and other auxiliary systems, while also recovering energy during regenerative braking.

Regenerative braking converts a vehicle’s kinetic energy, typically lost as heat during braking, into electrical energy stored in the battery for later use. This process extends the range of EVs and reduces wear on mechanical brakes. Power electronics, particularly inverters, are essential for controlling regenerative braking, ensuring stable operation and appropriate battery charging. Control algorithms within Electronic Control Units (ECUs) manage variables such as driver braking demand and battery charge levels.

Additionally, power electronics in the energy management system (EMS) optimize power distribution to various vehicle subsystems. For example, during high-speed driving or rapid acceleration, more power is directed to the drive motor, while at lower speeds, auxiliary systems like air conditioning may receive priority. DC-DC converters ensure proper voltage levels, and sophisticated algorithms maximize energy efficiency, driving range, and vehicle performance.

Case Study: Wireless EV Charging with WiTricity

Wireless charging of electric vehicle batteries is a groundbreaking application of power electronics by WiTricity. Using resonant inductive coupling based on Faraday’s law of induction, power is transferred from a charger embedded in the ground to a receiver on the vehicle. Power electronics manage the resonance of the transmitter and receiver, enabling efficient power transfer.

This technology offers cable-free charging convenience and has the potential for integration into public infrastructure, enabling seamless charging for parked or moving vehicles.

Conclusion

In conclusion, the power inverter is a fundamental component in enhancing electric vehicles. It is essential for speed and torque control, improves overall efficiency, and facilitates the conversion of DC from the battery to AC for the motor, among other functions that enhance the driving experience. The market for inverters is driven by advancements in semiconductor technology, increased power density, and improved control, delivering greater power and agility to EVs.

Developments in the design and technology of power inverters will shape the future of automotive electrification. As EV manufacturing grows, inverter technology will make next-generation EVs more efficient, cost-effective, and high-performing, incorporating new materials and advanced thermal management concepts.
