Semiconductor Manufacturing Equipment for Advanced Packaging Market, 2026-2032

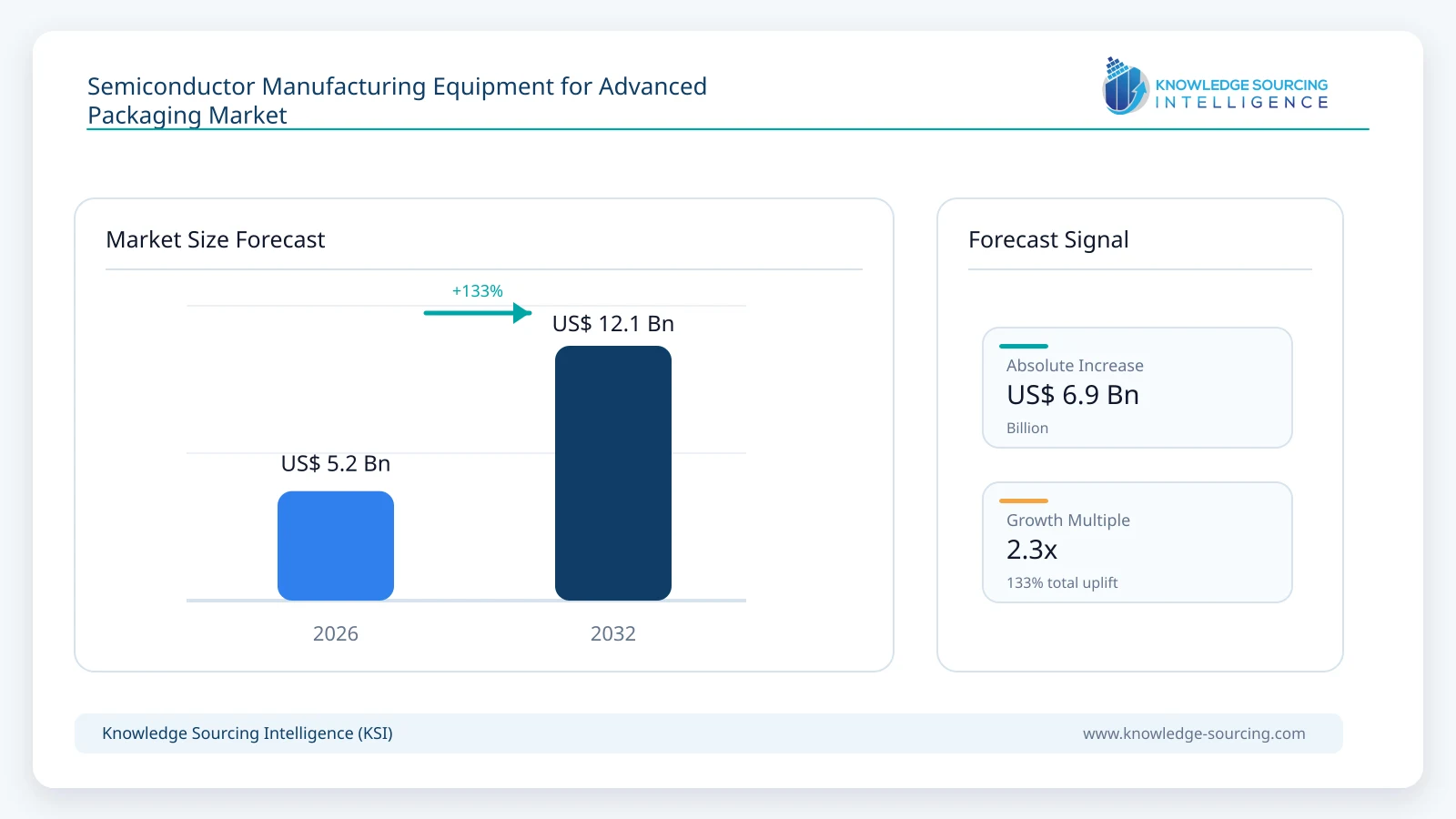

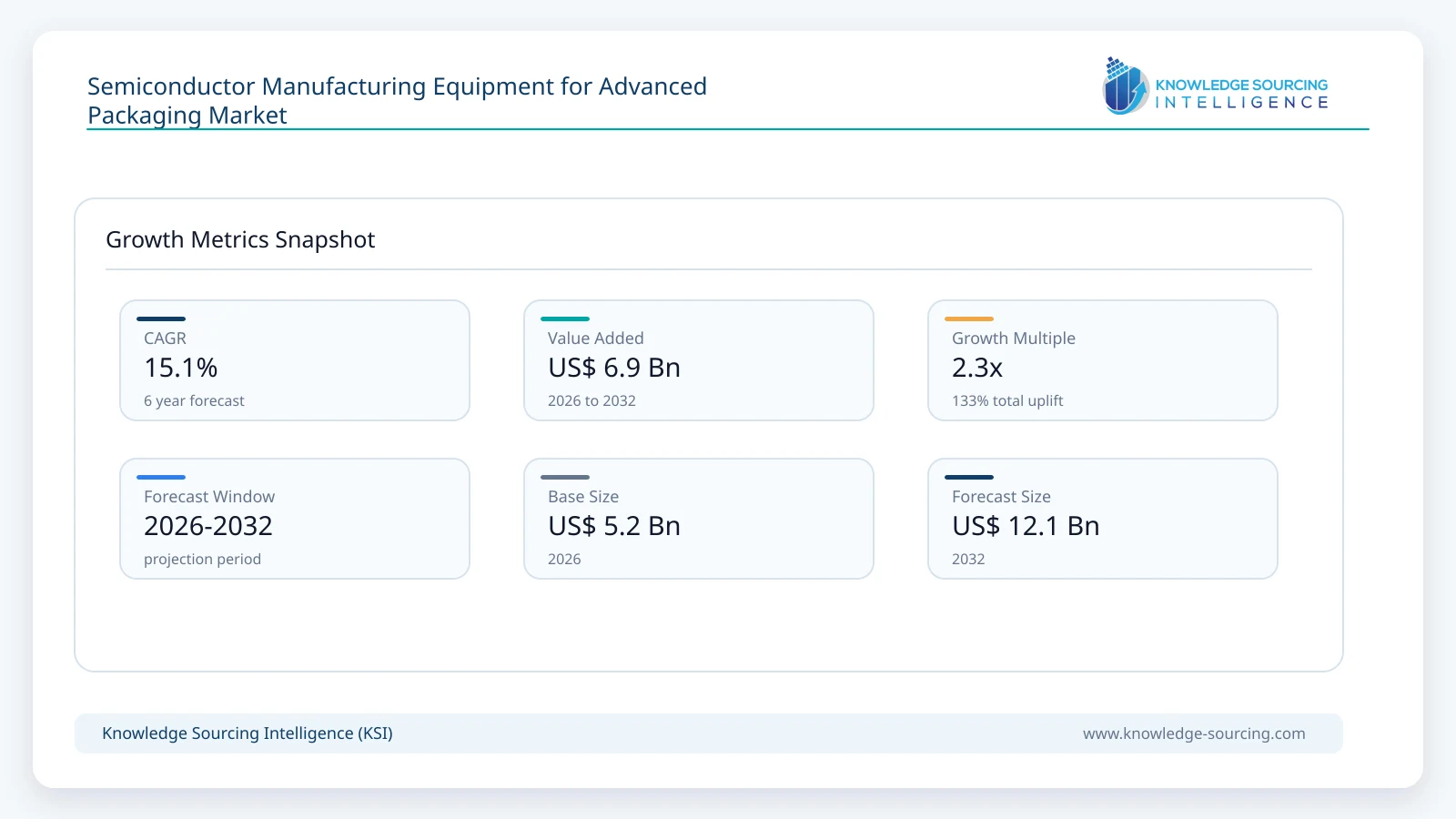

The Semiconductor Manufacturing Equipment for Advanced Packaging Market is estimated at USD 5.20 billion in 2026 and is projected to reach USD 12.10 billion by 2032, representing a CAGR of 15.1% during 2026-2032.

Market Overview

Report Metric	Details
Forecast Unit	USD Billion
Study Period	2020 to 2030
Historical Data	2020 to 2023
Base Year	2024
Forecast Period	2025 – 2030

Advanced packaging manufacturing starts with a broader process set than conventional semiconductor assembly. Large interposers and RDL structures require lithography, deposition, plating, etch and planarization. Thin wafers and stacked memory require grinding, temporary support and controlled release. Chiplets and HBM stacks require die placement with micron or sub-micron alignment, followed by TCB or increasingly direct copper hybrid bonding. Once packages become larger and interconnect pitches shrink, inspection and metrology must track warpage, overlay, particle defects, bump height and bond-interface quality at multiple points in the flow. This combination increases the number and technical value of tools required per advanced packaging line.

Bonding is becoming the central equipment bottleneck. TCB remains important for HBM, large AI packages and chip-to-substrate integration because it can handle fine-pitch interconnects while controlling force, temperature and package warpage. Hybrid bonding removes conventional solder bumps and directly joins dielectric and copper surfaces, enabling much denser interconnects for die-to-wafer or wafer-to-wafer stacking. Imec and EV Group demonstrated 200 nanometer copper interconnect pitch for wafer-to-wafer hybrid bonding in May 2026, illustrating how rapidly overlay and surface-preparation requirements are moving beyond traditional back-end tolerances.

Process control is expanding in parallel. Advanced packages contain several dies, multiple material systems and expensive known-good components, so a late-stage defect can destroy significantly more value than in a simple package. Applied Materials has introduced eBeam metrology and defect-review platforms for advanced packaging, while Onto Innovation provides inspection, three-dimensional metrology and panel-level lithography for AI and high-performance computing packages. As panel formats, glass cores and heterogeneous structures enter production, equipment vendors must support larger substrates, higher warpage and embedded features that cannot be inspected effectively with conventional two-dimensional methods.

Market Drivers

• AI and HBM increase the precision and capital intensity of packaging lines

AI processors combine large logic dies with multiple HBM stacks, interposers and advanced substrates. The package must deliver high memory bandwidth while maintaining tight electrical and mechanical tolerances across a large area. This increases demand for high-accuracy placement, TCB, wafer and die bonding, surface preparation, inspection and metrology. TSMC continues to expand its CoWoS advanced packaging platform for larger interposers and higher HBM content, while memory manufacturers are moving toward denser HBM stacks. Each transition raises the value of packaging equipment because alignment, coplanarity, thermal control and defect detection become more difficult as interconnect pitch declines and package dimensions increase.

• Hybrid bonding moves advanced packaging toward front-end process control

Hybrid bonding requires extremely clean surfaces, accurate dielectric and copper preparation, precise alignment and controlled bonding conditions. These requirements create equipment demand beyond a conventional assembly line, including CMP, plasma activation, cleaning, surface metrology and integrated bond inspection. Besi and Applied Materials have collaborated on integrated die-to-wafer hybrid bonding, while EV Group and ASMPT continue to expand production platforms for wafer-to-wafer and die-to-wafer bonding. As hybrid bonding moves from image sensors and selected logic applications into HBM, chiplets and high-performance processors, manufacturers require higher-throughput tools that maintain front-end-like process discipline in a back-end production environment.

• Yield protection increases inspection and metrology content per package

Advanced packaging combines expensive known-good dies, substrates, memory stacks and interconnect structures in a single product. This raises the economic cost of an undetected defect and supports more inspection steps during production. Process control must measure microbumps, RDL structures, copper pads, wafer topography, panel warpage, voids and embedded features. Onto Innovation is extending three-dimensional inspection and metrology into wafer- and panel-level packaging, while Applied Materials has introduced packaging-specific eBeam systems. The result is higher process-control content per manufacturing line, particularly for AI accelerators, large interposers, HBM and emerging glass-core package architectures.

• Panel-level and large-format packaging create new equipment requirements

Panel-level packaging aims to process more package area per manufacturing cycle than a 300 millimeter wafer, but it creates difficult challenges in substrate handling, lithography, die shift, warpage and inspection. Onto Innovation provides panel-level lithography and inspection platforms for advanced integrated-circuit substrates and fan-out panel-level packaging, while TOWA is expanding compression-molding systems for higher productivity. Glass-core substrates add further requirements for through-glass-via inspection, microcrack detection and large-format metrology. These process changes create opportunities for equipment vendors that can adapt wafer-level precision to larger and mechanically different substrates without sacrificing yield.

Restraints and Adoption Challenges

Advanced packaging equipment faces long qualification cycles, high capital cost and rapid process change. A bonding or lithography platform must often be tuned to a specific die, substrate, interconnect material and package architecture before entering high-volume production. Hybrid bonding adds demanding surface-flatness, cleanliness and overlay requirements, while panel-level processing introduces substrate warpage and handling challenges. Equipment utilization can also be uneven because AI and HBM capacity expands faster than mature semiconductor applications. Manufacturers therefore balance high-end tool purchases against the risk that package architectures or interconnect pitches change before installed capacity is fully utilized. In addition, several process steps sit between traditional front-end and back-end categories, requiring tighter integration among tool vendors, materials suppliers and packaging manufacturers.

Segment Analysis

By Equipment Type

Bonding and precision die-placement equipment is the largest equipment category in 2026, with an estimated market value of approximately USD 1.61 billion. The category includes high-accuracy flip-chip bonders, chip-to-substrate and chip-to-wafer TCB systems, die-to-wafer placement platforms and associated alignment equipment. Its scale reflects the widespread use of precision bonding across HBM, 2.5D interposer packages, advanced system-in-package designs and chiplet architectures. Demand is moving toward larger dies, finer bump pitch, tighter coplanarity control and fluxless or low-residue processes, increasing average equipment value and the importance of integrated process monitoring.

Hybrid bonding equipment is the fastest-expanding technology group and is projected to reach approximately USD 2.15 billion by 2032. The segment includes die-to-wafer and wafer-to-wafer bonding platforms together with the surface preparation, activation, cleaning and alignment functions required to create direct dielectric and copper interfaces. Adoption remains concentrated in leading-edge applications, but production activity is broadening from image sensors into logic, memory, HBM and heterogeneous integration. Commercial growth depends on increasing throughput while maintaining sub-micron alignment and extremely low defectivity across larger production volumes.

Advanced Packaging Process and Equipment Role

Market and Technology Indicators

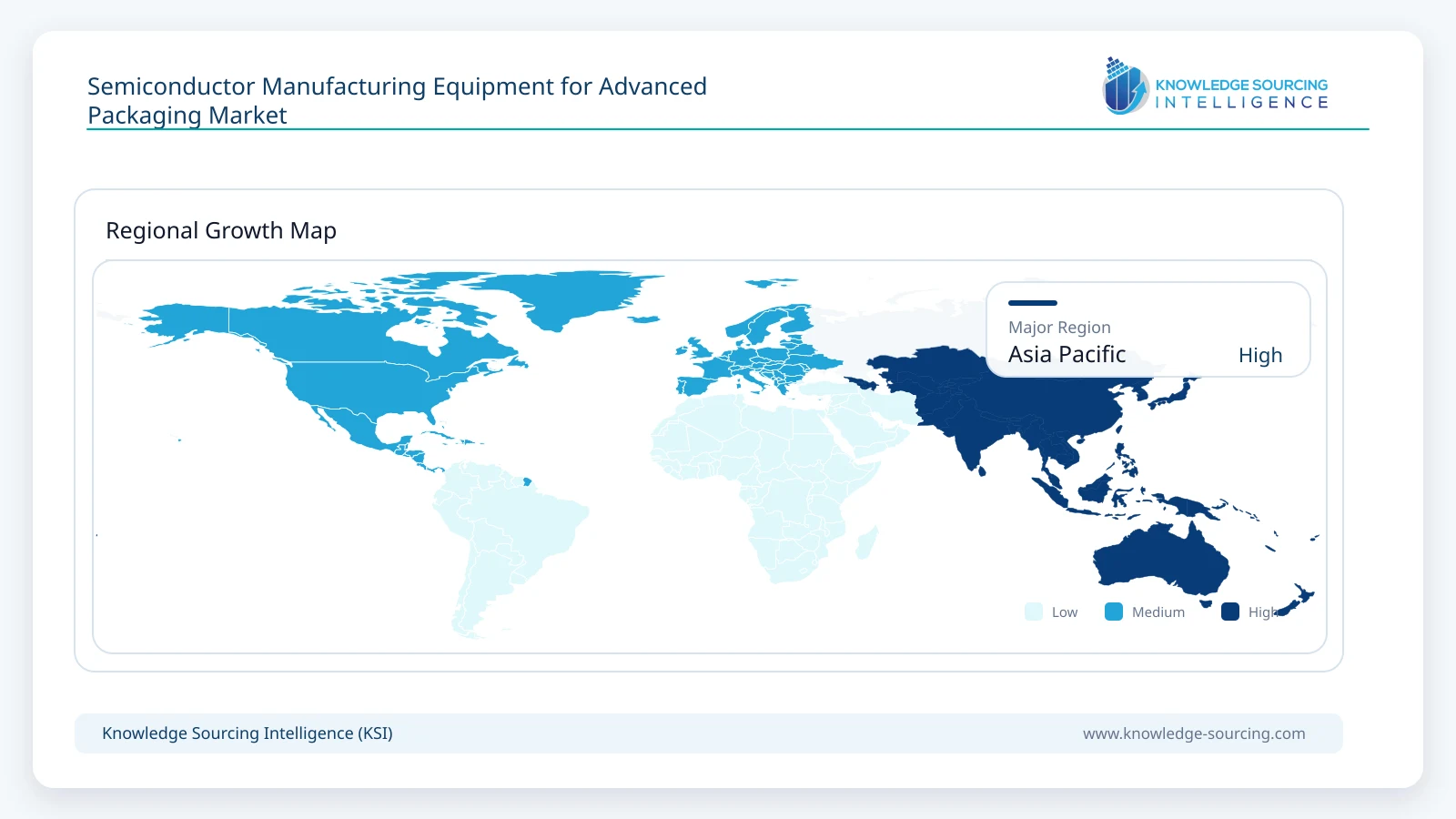

Regional Opportunity

Asia Pacific

Asia Pacific is the largest market for semiconductor manufacturing equipment used in advanced packaging because the region contains the deepest concentration of foundries, memory manufacturers, outsourced semiconductor assembly and test (OSAT) providers, substrate suppliers and electronics manufacturing capacity. Taiwan is central through TSMC, ASE and a dense supplier ecosystem supporting CoWoS, fan-out and three-dimensional integration. South Korea adds major HBM and memory packaging demand through Samsung Electronics and SK hynix, while Japan contributes both semiconductor manufacturing and a strong domestic equipment, materials and precision-processing supplier base. This concentration allows tool vendors to qualify new platforms close to the highest-volume advanced packaging customers.

Taiwan and South Korea are especially important for bonding and process-control equipment. TSMC is expanding CoWoS capacity and moving larger interposer formats into production, increasing demand for lithography, RDL processing, placement, molding and inspection. HBM production in South Korea requires repeated stacking and increasingly fine interconnects, supporting TCB today and hybrid bonding over the longer term. Equipment suppliers such as ASMPT, Besi, EV Group, Applied Materials, KLA and Onto Innovation consequently prioritize the region for customer qualification, applications engineering and production support. The high value of AI packages also supports faster adoption of advanced metrology because yield loss becomes increasingly expensive.

Japan plays a dual role as both an equipment supplier and advanced packaging market. TOWA is expanding compression molding, DISCO remains important in grinding, dicing and laser processing, Tokyo Electron and SCREEN participate in wafer processing, and ACCRETECH supplies precision inspection and processing systems. China continues to invest in domestic packaging capacity across OSAT and semiconductor manufacturing operations, while Singapore and Malaysia provide additional regional back-end capacity and engineering expertise. As supply chains diversify, Southeast Asia can absorb more advanced packaging investment, particularly where customers want manufacturing alternatives outside the largest existing hubs.

North America has a smaller manufacturing footprint but is strategically important because AI processor companies, equipment suppliers and new domestic packaging investments are concentrated in the United States. Applied Materials, KLA and Onto Innovation provide critical process and metrology technologies, while advanced packaging investment linked to U.S. semiconductor manufacturing expands the local equipment opportunity. Europe contributes through EV Group, Besi and SUSS MicroTec, as well as research ecosystems focused on hybrid bonding, three-dimensional integration and heterogeneous packaging.

Competitive Landscape

Competition spans several equipment categories rather than one integrated tool market. ASMPT and Besi are major competitors in precision die placement, TCB and hybrid bonding. ASMPT combines a large installed base in advanced bonding with growing hybrid-bonding and photonics platforms, while Besi has benefited from strong demand for hybrid bonding and AI-related assembly equipment. EV Group is differentiated in wafer bonding, temporary bonding, layer release and die-to-wafer alignment, particularly where packaging flows require wafer-level surface preparation and highly controlled bonding.

Applied Materials extends materials engineering, CMP, deposition and eBeam process-control capability into advanced packaging, while KLA and Onto Innovation compete in inspection and metrology. Onto also participates in panel-level lithography, giving it exposure to fan-out and advanced substrate manufacturing. TOWA is a major supplier of molding and encapsulation systems, and DISCO is important in wafer thinning, grinding, laser processing and dicing. SUSS MicroTec, Tokyo Electron, SCREEN Holdings, ACCRETECH and other specialists supply lithography, coating, cleaning, bonding or process-control equipment across wafer-level and heterogeneous integration flows.

Competitive differentiation increasingly depends on complete process performance rather than a single tool specification. Customers evaluate placement accuracy, bond yield, particles, throughput, substrate warpage tolerance, automation, recipe stability and the ability to integrate metrology into production. Equipment vendors that can support both development and high-volume manufacturing gain an advantage because advanced packaging processes often move quickly from pilot qualification into capacity expansion. Partnerships with foundries, memory suppliers, OSAT companies and research institutes are therefore central to winning next-generation bonding, panel-level and three-dimensional integration programs.

Major companies and ecosystem participants covered: ASMPT, BE Semiconductor Industries (Besi), Applied Materials, EV Group, Kulicke & Soffa, KLA, Onto Innovation, TOWA Corporation, DISCO Corporation, SUSS MicroTec, Tokyo Electron, SCREEN Holdings, ACCRETECH, Lam Research and Canon.

Recent Developments

• September 2026: ASMPT outlined an integrated materials, process, equipment and metrology framework for next-generation hybrid and thermo-compression bonding.

• July 2026: ASMPT announced significant wins for more than 50 chip-to-substrate TCB tools serving advanced packaging demand.

• June 2026: Applied Materials introduced new CMP, deposition and eBeam systems designed for advanced packaging and three-dimensional AI chip architectures.

• June 2026: Besi raised its long-term financial targets as hybrid bonding, photonics and AI data-center equipment demand strengthened.

• May 2026: Imec and EV Group demonstrated wafer-to-wafer hybrid bonding at 200 nm copper interconnect pitch with record overlay accuracy.

• May 2026: TOWA announced its INNOMS next-generation compression molding platform, with commercial sales scheduled from August 2026.
